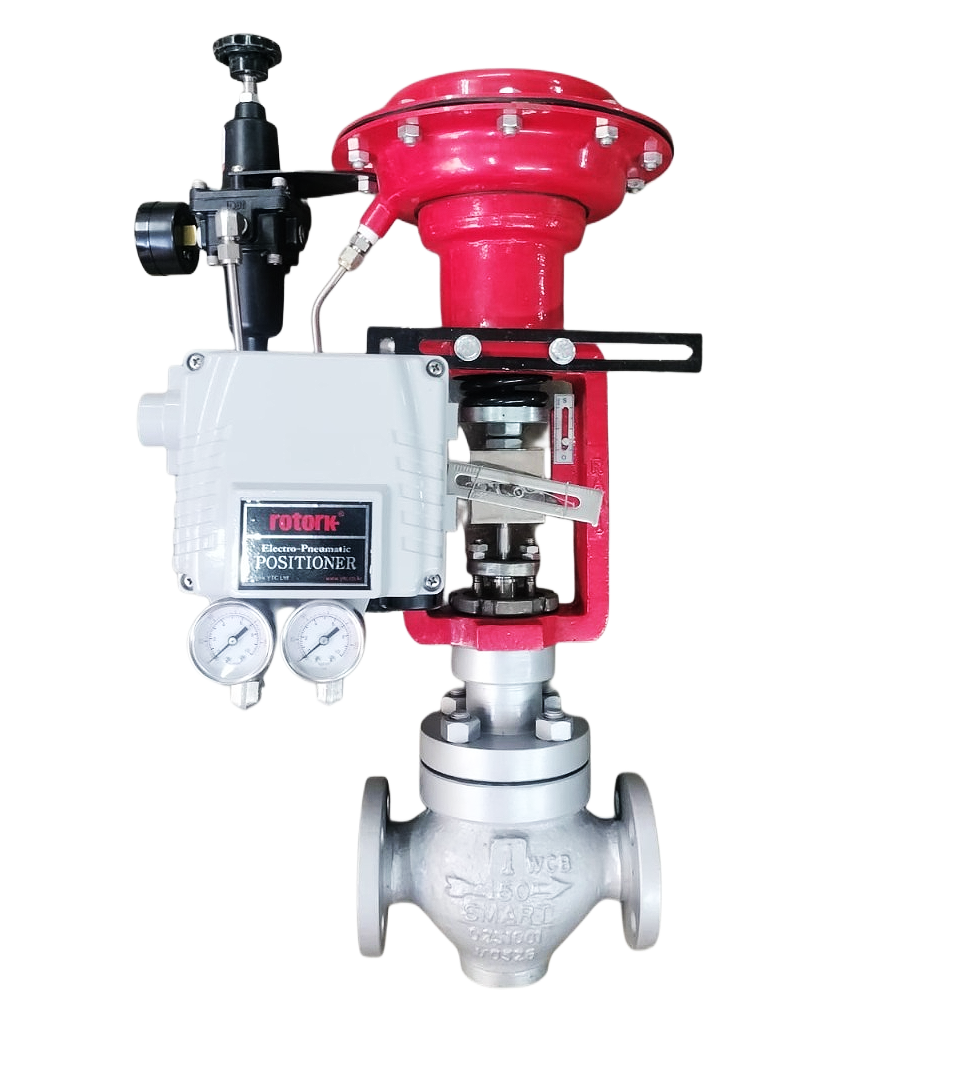

Globe 2 Way Valve

Globe 2-Way Control Valve — engineered for precision, reliability and industrial robustness. This valve is designed to regulate fluid flow through two ports (inlet and outlet) allowing both on/off and throttling applications with ease of installation and maintenance.

Key Features

Precise Flow Control: The valve’s globe-body design features a movable plug that moves perpendicular to the seat, enabling accurate flow adjustment, excellent throttling capability and tight shut-off.
Robust Construction: Built per recognised standards (e.g., ASME B16.34) and available in a wide range of sizes, pressure ratings and materials to suit diverse applications.
Flexible End Connections: Available in flanged, butt-weld, socket-weld, screwed end connections, with size range and ratings to match customer requirements.
Wide Media Compatibility: Suitable for liquids, gases, steam and other process media in industrial installations, thanks to varied body and trim materials.
Ease of Maintenance: Design features such as top-entry trim access simplify inspection and service, reducing downtime and lowering lifecycle cost.
Get A Quote

Technical Specifications

DESIGN ASME B16-34
VALVE SIZE 15 to 450 mm ( 1/2” to 18” )
RATING ANSI 150 to 2500 or Equivalents to BS, DIN, etc.
FACE TO FACE ISA S.75.03 up to 600# ISA S.75.16 900# and above
END CONNECTION Flanged, Butt Weld,Screwed, Socket weld.
BODY MATERIAL Carbon Steel, Chrome-moly Steel, Stainless Steel,Monel, Alloy20, Hastelloy B/C, Duplex Stainless Steel, Aluminum Bronze, PP, PTFE etc.
BONNET Standard , Extended
GLAND PACKING Grafoil / PTFE V Rings, Low Emission
TRIM DESIGNS Top Guided Contoured, Splined Micro Flow, V-Ported (Balanced / Unbalanced), Low Noise upto 4 Stage
TRIM MATERIALS Stainless Steel, Alloy20, Monel, Duplex Stainless Steel,13% Chrome Steel Hastelloy B/C, Stellite (Alloy 6 )
CHARACTERISTICS Equal Percentage, Linear and Quick Opening.
SEAT LEAKAGE As per ANSI/FCI-70-2 Class III. IV, V and VI (STANDARD LEAKAGE RATES) Metal to Metal Seating Class IV, Less than 0.01% of rated Cv. Metal to Soft Seating – Bubble tight (Zero Leakage)
ACTUATOR TYPE Diaphragm, Piston or Electric.
ACTUATOR ACTION Direct / Reverse Acting.
DIAPHRAGM Nitrile / Neoprene
SPRING RANGES 3 – 15 PSIG ( 0.2 – 1.0 Kg/cm² ) 6 – 30 PSIG ( 0.4 – 2.0 Kg/cm² )
AIR SUPPLY 20 – 35 PSIG (1.4 – 2.5 Kg/cm² )
AIR CONNECTION 1/ 4” or 1/ 2” NPT
ACCESSORIES Valve Positioner – Pneumatic ,ElectroPneumatic, Smart Positioner. Instruments- Airset, Solenoid Valve, Air Lock, Volume Booster, Position Transmitter, Limit– Proximity Switches etc. Features- Top or Side Mounted handwheel, Limit Stops Removable Blind Head, Steam Jacketing, etc.
